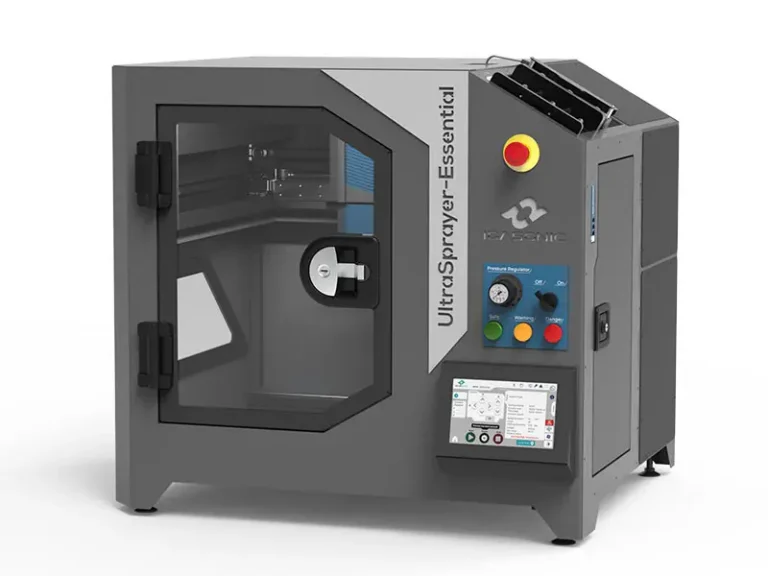

UltraSprayer® – Essential

Essential Desktop Ultrasonic Spray Coating with XY Motion The UltraSprayer®-Essential is our desktop product featuring economical and essential equipment specifically designed for research and development applications. This system bridges the gap between entry-level and advanced coating systems by offering XY motion capabilities in a compact, cost-effective package.

Essential Desktop Ultrasonic Spray Coating with XY Motion

The UltraSprayer®-Essential is our desktop product featuring economical and essential equipment specifically designed for research and development applications. This system bridges the gap between entry-level and advanced coating systems by offering XY motion capabilities in a compact, cost-effective package.

Key Applications

Solar cell research and prototyping
Fuel cell development
Optoelectronic device fabrication
Semiconductor thin film coating
Flexible electronic device research
Nano-coating studies

Essential Features

XY Motion System

Automated 250×250mm scanning area with high-speed movement up to 1500 mm/s for precise coating patterns.

Touch Screen Control

User-friendly interface makes programming and operation simple for researchers of all experience levels.

Desktop Footprint

Compact 850×900×750mm dimensions perfect for laboratory installation.

Cost-Effective

Essential features at an economical price point, ideal for budget-conscious research projects.

Superior Performance

The UltraSprayer®-Essential offers superior performance, especially in the production of homogeneous nano-sized coatings in thin film form. The combination of ultrasonic atomization technology and precise XY motion control ensures excellent coating uniformity and repeatability.

Core Equipment Package

Triple Syringe Pump
XY Motion Spray Nozzle
Heater Plate
Touch Screen Control

Why Choose UltraSprayer®-Essential?

Balanced Performance: Essential features with automated motion control
Research Acceleration: Increases speed of R&D efforts and product development
Cost-Effective Solution: Advanced capabilities at an economical price point
Proven Technology: Based on IDASONIC’s ultrasonic spray coating expertise
Reliable Results: Consistent homogeneous nano-coating performance

Available Through Utrecht Instruments

Get in touch with us today to discover more about the UltraSprayer®-Essential and find the cost-effective answer for your nanocoating needs.

CONTROL UNIT	Embedded control unit Touchscreen with user-friendly interface 3x IdaConnect® Interface
NOZZLE MOTION	XY scanning area: 250mm × 250mm Nozzle travel speed: up to 1500 mm/s Nozzle travel acceleration: 500 mm/s² Z-height can be manually adjusted between 50-300 mm IP54 Environmental protection Aluminum mechanism for rust protection
ULTRASONIC SPRAY NOZZLE	IdaMist® Ultrasonic Atomizer Operating frequency: 100 kHz (options available) Output power: 8 W Average droplet size: ~20 µm
HEATING PLATE	Operating temperature: max 500°C Surface area: up to 250mm × 250mm Precise temperature control with K-type thermocouple
VACUUM PLATE (OPTIONAL)	250mm × 250mm For fixing thin and flexible substrates
LIQUID DELIVERY	IdaFlow® Syringe Pump Triple syringe pump for high volume solutions Suitable for up to 60ml syringes of different types and volumes PCB controlled adjustable flow rate: 0.5 – 20 ml/min
LIQUID DELIVERY (OPTIONAL)	IdaFlow® MicroSyringe Pump Z-axis integrated microsyringe pump for low volume solutions Minimal solution loss Single microsyringe pump suitable for syringes (<10ml) PCB controlled adjustable flow rate: 5µl/min – 5ml/min
CHAMBER SPECIFICATIONS	LED lighting Humidity & Temperature sensor to read relative humidity & temperature
GENERAL DIMENSIONS	Outer dimension: 850mm × 900mm × 750mm
CERTIFICATION	CE, ISO 9001:2015
